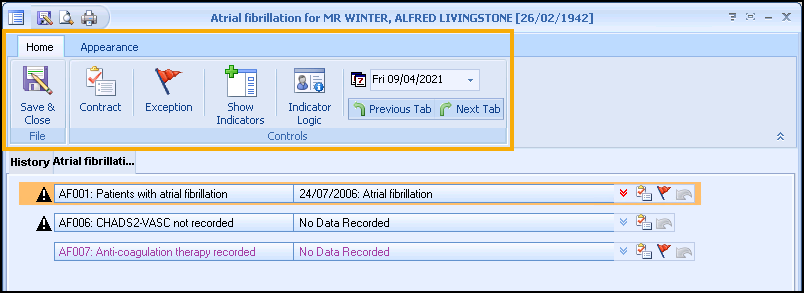

Toolbar

The Toolbar enables you to access the various functions of the template, for example, contract codes, exceptions and BP measurements. By highlighting a line, the relevant icons on the Toolbar are enabled or disabled depending on whether they are available for use.

Most of the icons on the Toolbar are duplicates of those displayed alongside each category, the exception to this is the Indicator logic icon option that displays on the toolbar only:

Toolbar Icon	Description
	Save & Close - This saves the data to the patient's record and closes the template.
	Rule Logic - Displays the Rule Logic Tool.
	BMI - Displays the BMI Calculator.
	BP - Displays the Blood pressure data entry screen, see Recording Blood Pressure Values.
	Smoking - Displays the smoking data entry screen, see Recording Smoking Status.
	Codeset - Opens the Codeset Codes data entry screen where clinical terms can be chosen from a pre-defined list.
	Contract - Opens the Codeset Codes data entry screen where clinical terms can be chosen from a pre-defined list.
	Additional - Displays data entry terms for entering additional clinical terms.
	Rule Logic Exception - Displays the Rule Logic Exception Tool.
	Exception - Opens the Exception Codes data entry screen.
	Previous Exception - Displays expiring terms for the previous contract year.
	Show Indicators - Select to display the patient's Alert Indicator without opening Consultation Manager. See Vision+ Alert Indicator for details.
	Undo Last Entry - Undo the last entry recorded.
	Undo All Entries - Undo all entries recorded.
	Indicator Logic - You can use the Indicator Logic tool to view the rule set logic behind the pathway. See Indicator Logic Tool for details.
	Default Date - The date defaults to today but can be changed by entering a new date or by choosing from the calendar. See Default Date for details.
	Previous and Next Tab - The previous and next tab toggle you through the tabs of the template.
