SCI Store Radiology and Diagnostic Imaging Results - Scotland only

Note - Only applicable if your Health Board has this enabled.

Vision 3 is now ready to receive radiology results into Mail Manager in the same way as pathology results.

Radiology result messages differ from pathology results in the following ways:

  • The result is coded against the procedure or device used, rather than reporting on a clinical result or outcome.

  • The clinical information for the result is supplied as free text.

  • The result is received by the patient’s Usual or Registered GP.

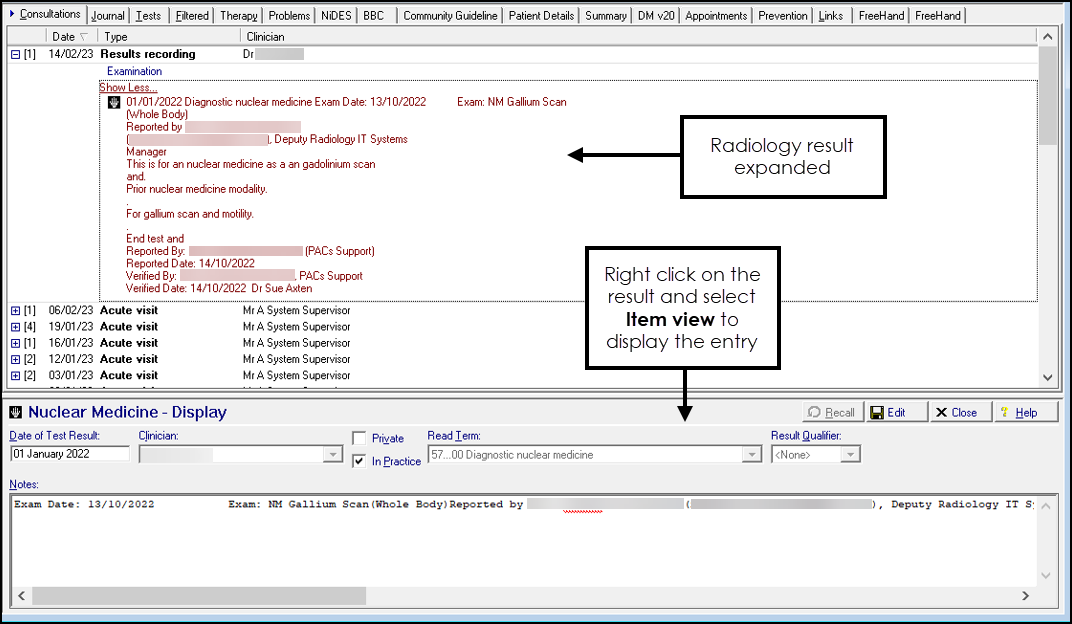

Once filed radiology results display in the patient record in the following way:

Training Tip - Within Consultation Manager, select More… on a record to expand it.

The following lists the radiology message types received and the Vision 3 structured data area (SDA) they display in once filed to the patient record:

Clinical Term Received Vision 3 SDA
54P.. Other Arthrography Other Diagnostic Imaging
561.. Fluoroscopy Fluoroscopy
55… Cardio vascular system angiography Other Diagnostic Imaging
567.. Computerised axial tomography CAT Scan
569.. Nuclear magnetic resonance MRI Scan
57… Diagnostic nuclear medicine Nuclear Medicine
52… Plain radiography Other Diagnostic Imaging
537.. Soft tissue X-ray breast definite preferred Mammogram
57C.. Positron emission tomography Nuclear Medicine
5233. Dental radiography Other Diagnostic Imaging
585.. Other diagnostic ultrasound General Ultrasound Scan
584.. Ultrasound in obstetric. Other Diagnostic Imaging
56D.. Other diagnostic radiology Other Diagnostic Imaging
58E.. Dual X-ray photon absorptiometry Dexa scan/Bone mineral density
3612. Endoscopy carried out Endoscopy
See Pathology Processing Quick Reference in the Mail Manager Help Centre for details.
Note - To print this topic select Print in the top right corner and follow the on-screen prompts.
